X-Hatch

Hi everyone!  Sorry the blog has been dormant for so long.  I have had other things to do, I guess.

Back in the 90's, when Photoshop 6 cost a lot of money and there was no GiMP, there was a plug-in for Photoshop called X-Hatch by a company called Inklination.  It was a ridiculously-powerful little plug in that allowed the user to do all manner of really interesting renderings which are all types of cross-hatch effects to a photo.

Unfortunately, that plug-in has simply vanished and there hasn't really been a replacement for it as far as I can tell.  I have a clever little app on my Android pad which will do something like X-Hatch to photos, but it's just not the same.

This tutorial is also not exactly the same, but it will be able to move you from something like this:

Royalty-Free Image provided by http://www.sxc.hu
And with a few simple adjustments and a clever use of layers, come away with something that looks like this:

CLICK TO ENLARGE

Click that second image to get the full effect, and then download this file, which is my x-hatch base file.  You will need it to create the pen strokes once we have done some basic manipulation of the image.  That file is pretty big (about 61 MB) but it's worth it for this effect.

Let's think first about how an x-hatch image needs to be created.  Take a look at this version of the original image:


This image is effectively a 4-color grayscale image of the original (white plus 3 gray levels), but it is made by taking the image and broadly adjusting the threshold 3 times: once for low-threshold contrast, once for middle-threshold contrast, and one for high-threshold contrast.  The three layers are then flattened and we get something that effectively shows us all the brightness levels of the original, compressed into 4 categories.  What we need to do is to turn each of those threshold layers into pen-stroke layers, and then flatten them to get a cross-hatch effect which makes sense when you look at it.

But wait: some of you are now asking you browser window: "What the heck is a 'Threshold'?"

That is a great question.

A decent brief explanation of what "threshold" is can be found at this link, but for the lazy or impatient, GiMP allows you the user to transform an image into a high-contrast black-and-white image by selecting the cut-off brightness value for converting the color pixels in your image to either black or white.  That may sound like mumbo-jumbo to you, but think of it this way: the colors in every picture can be represented by a chart (or "histogram") ranging from dark to light like this:


On this histogram, the left side indicates the darkest shades, the right indicates the lightest.  To see this histogram of an image you're using, go here: Colors > Threshold.  You'll get this dialog window:

The sliders at the bottom of the histogram tell the tool how you want to convert your image.  The black slider causes the threshold to set the cut-off point (the threshold) to covert the pixels to either black or white starting with the darkest color, and moving right includes more and more lighter colors.  The white slider starts with the lightest color, and moving from right to left causes the tool to covert darker and darker colors to black.  For this tutorial, are are only going to monkey with the black slider, but you can quickly figure out how both sliders can help you create some interesting effects.

... for example ...

For this first part of this tutorial, Let's simply set up the image into threshold layers using 3 different threshold settings. Open the sample image in GiMP, and then look at the LAYERS dialog window.  You should see one layer, which is the base layer of this image.

CLICK TO ENLARGE
Under the list of layers are 6 layer control buttons.  In the example above, I have highlighted in greed the "duplicate layer" button.  Click it 3 times, and you'll get 3 more layers identical to the first one, and your layers dialog window will look like this:


When you have 4 layers showing, it's always useful to rename them to remember what you;re going to use them for.  To do that, double-click one of the layers, and its name will appear highlighted.  Type in the new layer name as you see fit.

The thing about layers is that they are exactly like sheets of paper, and the one on the top is the one you can see -- unless you do something to is which either makes it invisible, translucent, transparent, or function as a mask or filter.  Since most of those are out of the scope of the tutorial, let's just show you that you can make these layers completely transparent so you can see the layers underneath them.

Simply move to the dialog box, click on the "eye" icon in the "LOCK" column each of the 4 layers, and watch what happens.  Your Layers dialog will look like this:

but your image window will now look like this:


That's because you have made all the pixels in all your layers invisible down to the transparent file under the image itself.  This will come in handy as we start to manipulate this image with the Threshold tool.

To finish up this first step in this effect, let's make one layer the high-threshold contrast, one a mid-threshold contrast, and the last a low-threshold contrast.  You'll want to leave the base layer as-is for the last step of this effect.

So make the top layer of this image visible, and select the layer.  Then go to the "Threshold"tool (Color > Threshold) and pull the black slider to the left until it is pointing at the first hash mark (which is the 20% threshold).  You should get something like this:

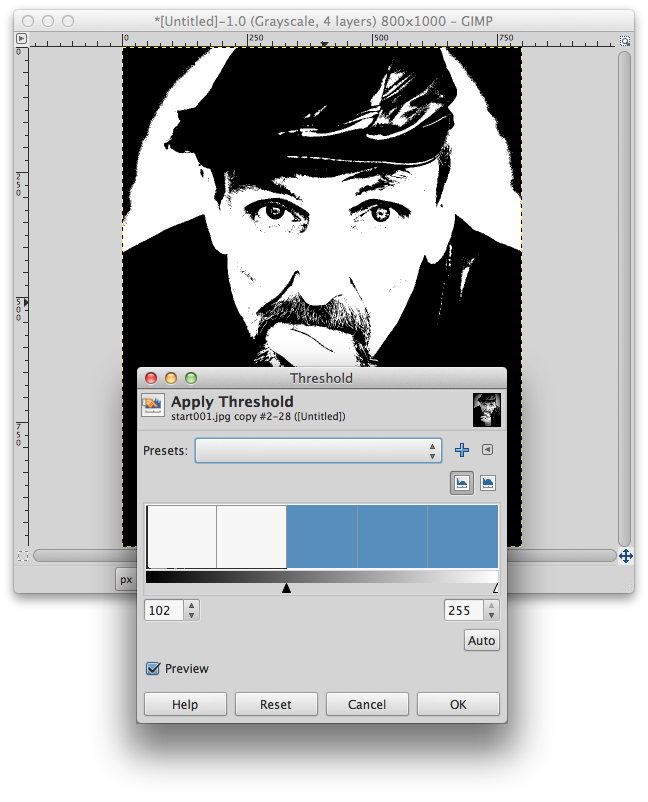

Click "OK" to convert the layer, and then make it invisible.  Make the second layer visible, and select it. Go to the threshold menu, and pull the slide to the second hash mark (which is 40% threshold).  You'll get something like this:


Click "OK" to convert the layer, and then make it invisible. Make the third layer visible, and select it. Go to the threshold menu, and pull the slide to the third hash mark (which is 60% threshold).  You'll get something like this:

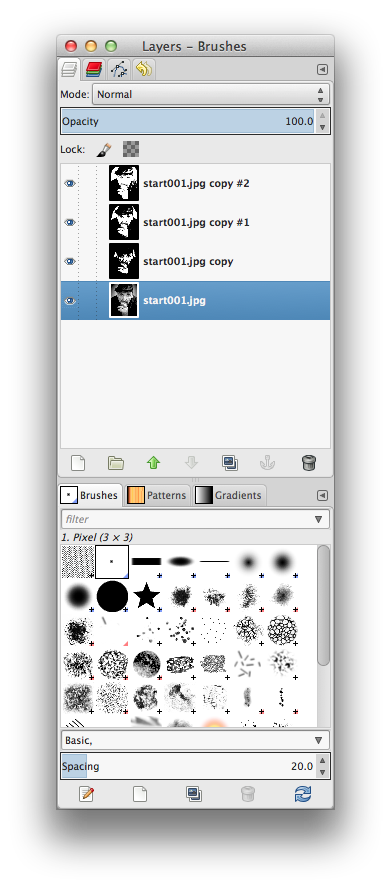

So now you have three layers that should look like this in your layers dialog:

What that leaves us with is the three layers of contrast we need to make the hatch effect work.  If you're ready to continue, open the file "4-way-hatch.xcf" which I linked you to up above.  When you do, you'll find something like this in the Layers dialog when it is the active document:

It's 4 layers with 4 different hatching patterns -- diagonal slanted right, diagonal slanted left, horizontal, and vortex.  We'll be using the top 3 for this tutorial, but I'll show you two alternative renderings using the vortex pattern so you can brainstorm your own uses for this file.

Before we use those hatch layers, go back to the image you want to convert to hatches.  Select the top layer and make it visible.  Now click the first button on the left of the layers dialog, which is the "new layer" button.  If you simply press return when the "new layer" dialog pops up, you'll get a new, blank layer on the top of all your other layers.  Select that layer and click the "Duplicate Layer" button twice.  Now you should have something like this:

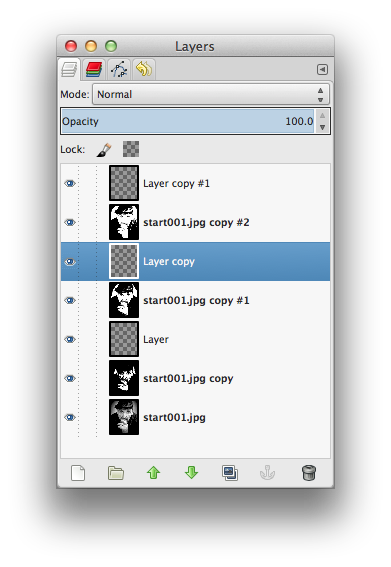

The great thing about the layers dialog is that you can move the layers around in the stack just by clicking and dragging them around.  What you want to do is sort the layers so that the top layer is blank, then the next one is one of your threshold layers, then a blank, then a threshold.  Make it look like this:
Now you're ready for some hatching.  This next part takes some patience, but it's actually really easy.

1. Make your highest THRESHOLD layer visible, and then click and select EMPTY layer ABOVE it.
2. Select the "4-way-hatch" image, and select the TOP layer of hatch lines in the layers dialog.  Now click "CTRL-A" to select the whole layer, and then "CTRL-C" to copy it.

3. Select the IMAGE window, and then PASTE the copied hatch marks into the top empty layer.  After you paste, click the Anchor icon in your Layers dialog to anchor the hatch lines into the layer

At this point, you will have something that looks like this in your LAYERS dialog:

The EMPTY layer above your highest threshold level now is filled with repeating hatch lines.  It's important that the hatch lines layer is ABOVE the image you're going to hatch our for the next two steps.

4. Make sure the HATCH layer is selected, and then go to the drop down "MODE" menu at the top of the LAYERS dialog.  Drop down the menu so you can see this:

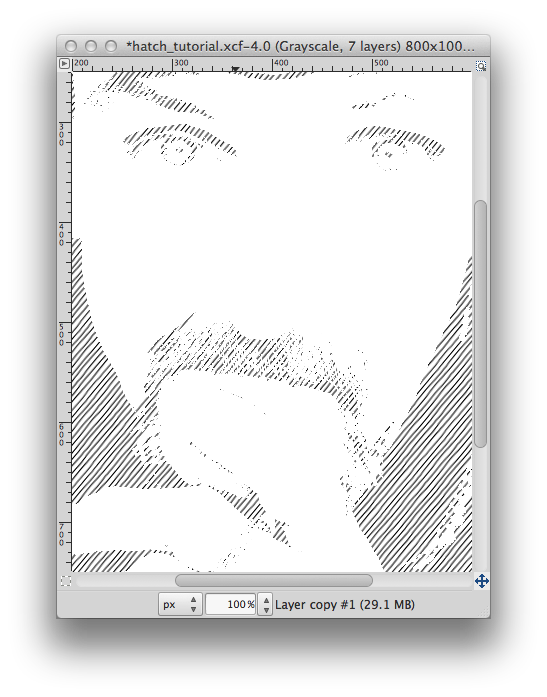

The MODE menu allows you to apply the layer you have selected to the layer(s) beneath it using different algorithms to create not color or lightness effects.  At the end of all that geek speak, the layer's "mode" causes it to combine with the layers under it using a special effect.  "Normal" mode is simply to cover the layers under the layer selected using the opacity you choose.  For this tutorial, we are going to use the "Screen" mode which takes the layer you have selected and applies it to the visible layers underneath as a sort of fill.  When you select "Screen" from the mode menu, you should get something like this:

All the black in the high threshold layer is now filled with the hatch marks from the top layer -- but the layers are still distinct.  We want to combine them permanently into a layer for future use.

5. Right-click (Control-click on a Mac) the top layer (the one with the hatch marks) and select "merge down" from the context menu.

What this does is permanently apply the hatch layer to the image layer using the "Screen" mode, making the layer a hatched image layer.

6. Repeat steps 1-5 for the other two image layers, but as you do it, use a different hatch layer for each threshold layer.  The top layer we just did has hatch marks running diagonal from bottom-left to top-right.  When you are done, you'll have 3 layers plus the base layer in your Layers dialog, like this:
From this point, the rest is easy.  Select the TOP layer, go to the MODE menu, and select the "Darken Only" mode.  Select the SECOND layer, go to the MODE menu, and again select the "Darken Only" mode.  When you're done, you should have something that looks like this in the main image window:

All that's left is to use your context menu to merge the layers into one and this is essentially finished.

The one alternative I wanted to show you uses the use of the vortex hatch layer.  There's a certain flatness to the original method -- the curves of the subject's face don;t show through.  The totally-straight lines look inorganic.

However, if you use the Vortex hatch for the for the darkest threshold layer, you can get something like this:


The lines running in a curve add a more natural feel to the hatch effect.
